EN 10217 LSAW STEEL PIPE
- Commodity name： EN 10217 LSAW STEEL PIPE
keyword：
Details
- 产品描述
-

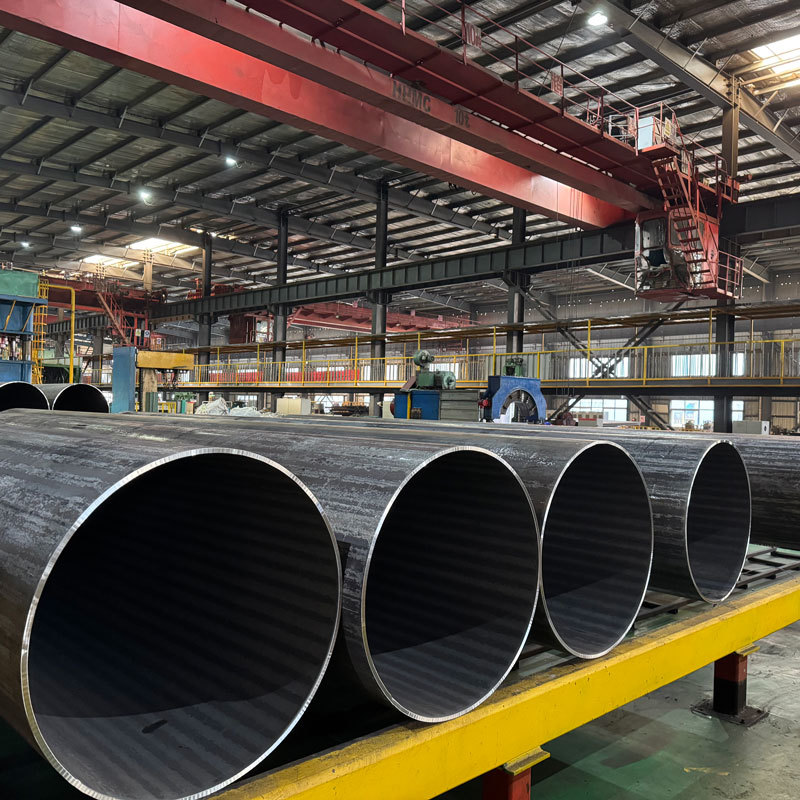

EN 10217 LSAW STEEL PIPE
Standard: EN 10217
Steel Grade: P195GH, P235GH, P265GH
Outside Diameter: 406.4mm - 1422.4mm(16inch-56inch)
Wall Thicknss: 10 - 50mmLength: 5.8m / 6m / 12m, also depend on requirements
Pipe End: flat end/ chamfer end/ groove/ thread
Coating: Black / varnish / 3PE / galvanized / fused epoxy coating
Chemical composition
Chemical composition(cast analysis)% Steel Grade C Si
max.Mn P
max.S
max.P195GH ≤0.13 0.35 ≤0.70 0.025 0.020 P235GH ≤0.16 0.35 ≤1.20 0.025 0.020 P265GH ≤0.20 0.40 ≤1.40 0.025 0.020 Mechanical properties
Mechanical properties for wall thickness T≤16 Steel Grade Tensile properties at room temperature Upper yield strength MPa Tensile strength Mpa Elongation % longitudinal transverse P195GH 195 320-440 27 25 P235GH 235 360-500 25 23 P265GH 265 410-570 23 21 Detailed Information
Features:- Large diameter and thick wall: EN 10217 LSAW steel pipes are capable of producing large diameter and thick wall steel pipes, suitable for long distance pipes requiring high strength and large size.
- High pressure and low temperature resistance: These steel pipes have good high pressure and low temperature resistance, suitable for use in a variety of environmental conditions.
- Dimensional accuracy and uniformity: LSAW steel pipes have high dimensional accuracy, uniform wall thickness and good surface quality, helping to improve the overall performance and reliability of the pipe.
- Welding quality: The use of pre-welding and final welding process, stable welding process, high welding quality, easy to carry out non-destructive testing in the production process and on-site non-destructive testing during use.
Production procedure
1. Prepare raw materials
- Steel plate inspection: Full plate ultrasonic inspection is carried out on the steel plate on the production line to ensure that the raw material is free of defects.
- Steel plate edge milling: Both sides of the steel plate are milling with an edge milling machine to meet the width and edge shape requirements.
2. Forming process
- Prebending: The edge of the steel plate is prebent using a prebending machine to meet the curvature required for forming.
- Forming: Using JCOE or UOE forming technology:
- JCOE forming: After many stamping, the steel plate first forms a "J" shape, then a "C" shape, and finally an open "O" shaped tube blank.
- UOE forming: The steel plate is prebent and then deformed into a round tube blank by U and O forming machines.
3. Welding process
- Pre-welding: Spot welding is performed on the tube blank after forming to maintain its shape.
- Internal welding: multi-wire submerged arc welding technology is used to weld the inside of the steel pipe.
- External welding: multi-wire submerged arc welding technology is also used to weld the outside of the steel pipe.
4. Quality inspection
- Ultrasonic inspection: 100% ultrasonic inspection of the welded steel pipe to ensure that the weld is free of defects.
- X-ray inspection: X-ray industrial television inspection system is used for further inspection of the weld.
5. Post-processing
- Expanding: Through the expanding treatment to improve the dimensional accuracy of the steel pipe and improve the stress distribution.
- End processing: The two ends of the steel pipe are processed to achieve the required specifications.
6. Final inspection and coating
- Water pressure test: water pressure test is carried out on the finished steel pipe to test its ability to withstand pressure.
- Final inspection: Conduct final quality inspection to ensure that the product meets the standard.
- Coating treatment: The steel pipe is treated with anti-corrosion coating as required.
